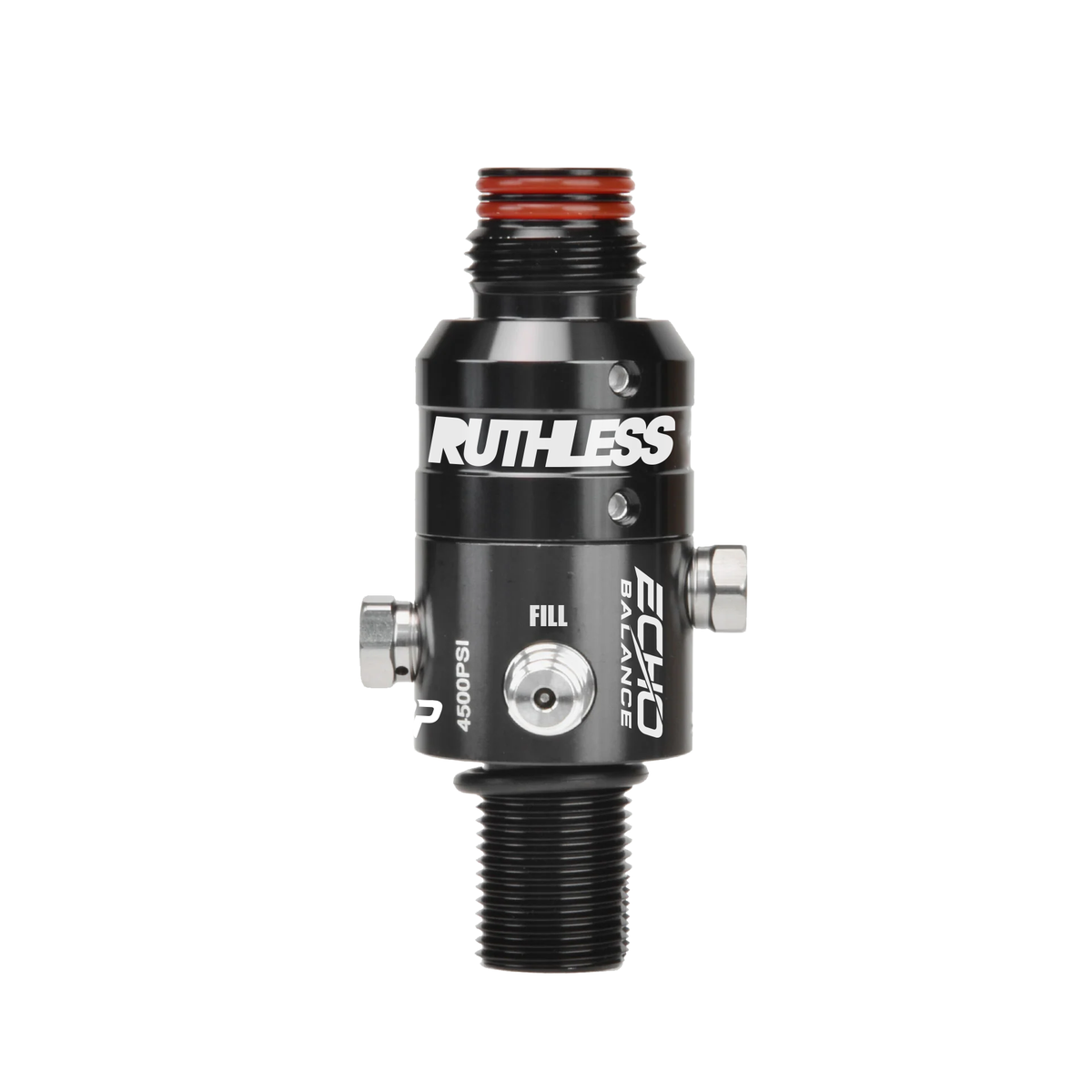

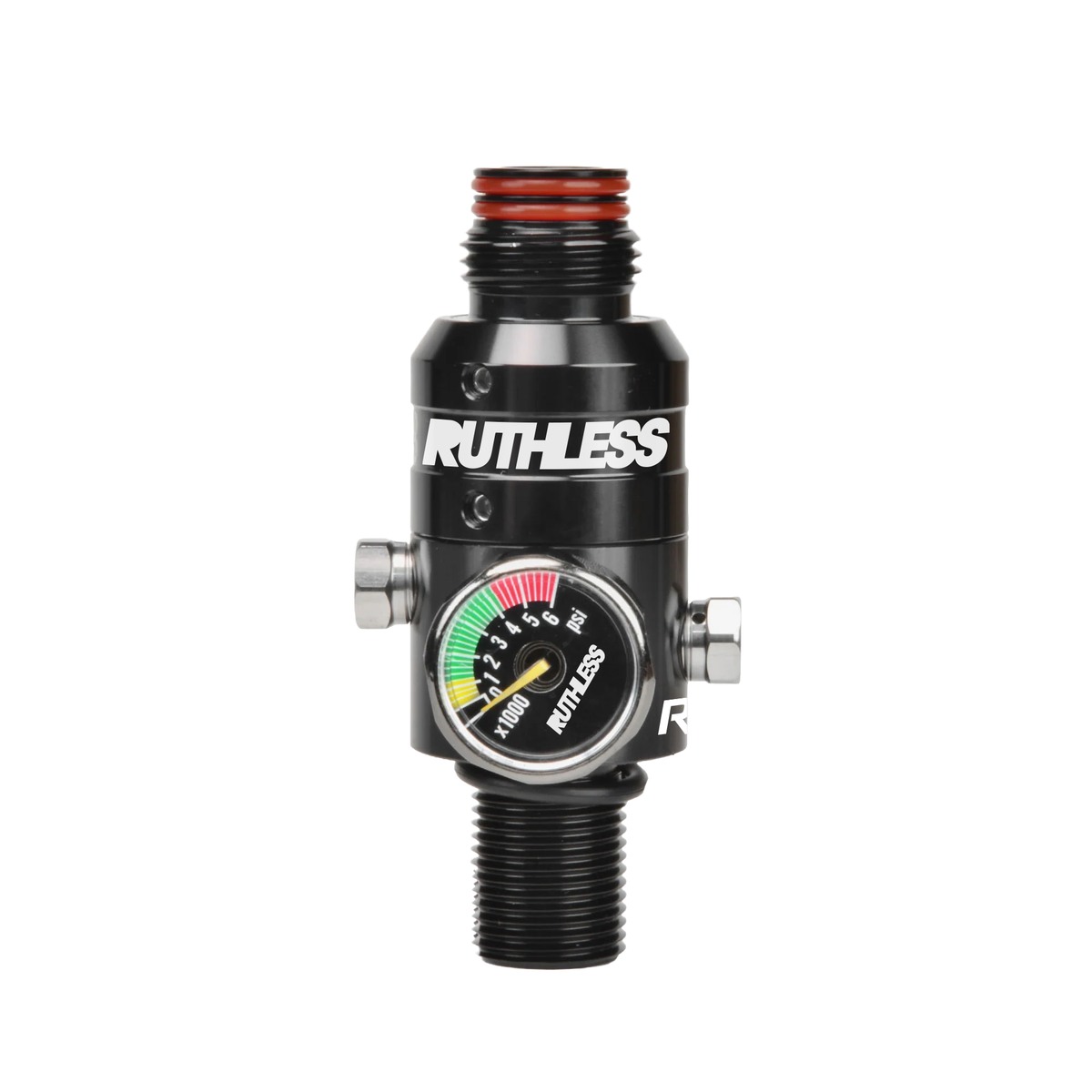

ECHO Regulator

Balanced air. Consistent output. Zero guesswork.

The ECHO is the foundation of the ECHO air-system platform engineered to deliver smooth, repeatable air output shot after shot. Built around a balanced internal design and a high-strength pressure disc spring, ECHO maintains stable output pressure under rapid fire while minimizing pressure spikes and drop-off.

Constructed from aviation-grade aluminum alloy with a hard-anodized surface finish, the ECHO Balance is built for long-term durability, wear resistance, and consistent performance in demanding play environments. A double sealing-ring structure and high-strength O-rings ensure reliable sealing and extended service life, even under sustained high pressure.

Designed for modern electronic and mechanical markers alike, the ECHO focuses on stability over flash. The result is a regulator that performs predictably in all conditions, helping markers cycle cleaner, recharge faster, and operate more efficiently.

This is regulation done right no gimmicks, no unnecessary complexity just reliable air control where it matters most.

KEY FEATURES

• Balanced internal design for consistent output pressure

• High-strength pressure disc spring for stable, repeatable regulation

• Smooth airflow path for high flow rate and reduced turbulence

• Double sealing-ring structure for reliable, long-term sealing

• Aviation-grade aluminum construction with hard-anodized, wear-resistant finish

• 360-degree rotatable bonnet for flexible gauge and fill-nipple positioning

• Lightweight, rebuildable design for easy service and long lifespan

TECHNICAL SPECIFICATIONS

• Tank Inlet Thread: 5/8-18 UNF (standard paintball tank)

• Outlet Thread: G1/2-14 (0.825-14 NGO)

• Default Output Pressure: 400 PSI (±50 PSI)

• Adjustable Output Pressure:

  • 600 PSI

  • 800 PSI
    (via included adjustment gaskets)

• Burst Disks:

  • 1.8K (low pressure)

  • 7.5K (high pressure)

• Fill Interface: Includes standard 8mm quick-disconnect male Foster fitting

SERVICE & SAFETY

• Designed to support routine maintenance and extend overall service life

• High-strength sealing components engineered for repeated rebuilds

• Dual burst-disk safety system provides reliable over-pressure protection

• Built for secure, consistent operation under high-pressure use


• Complimentary rebuild kit included with

  • • Replacement O-ring set

    • 1 x Burst Disc

    • 1 x Fill Nipple

    • 1 x Replacement Pressure Gauge
